FZT-2 Automated Zebra Angle System

Automated Zebra-Angle Measurement for Objective Glass Quality Control

FZT-2 converts conventional zebra-pattern inspection into a quantitative, repeatable measurement process with automated analysis, reporting and traceable test records.

Request Technical Review View System Overview
FZT-2 automated zebra angle measurement system Integrated Measurement System

Measurement Logic

How FZT-2 Evaluates Distortion Features

FZT-2 identifies wave-line features within the zebra pattern and applies a consistent method for optical-distortion measurement.

Zebra pattern
Detected wave lines
Feature evaluation
Zebra angle
01

Automatic Feature Detection

Relevant wave-line features are identified automatically within the zebra pattern.

02

Consistent Evaluation

Detected features are evaluated using the same measurement method across samples.

03

Zebra-Angle Determination

The zebra angle is determined when the detected distortion feature reaches the defined evaluation criterion.

System Architecture

An integrated measurement system composed of optical, mechanical and software modules, working together to support stable, accurate and repeatable measurement.

FZT-2 zebra board
01

Zebra Board

Provides a stable, high-contrast zebra pattern for angle measurement.

FZT-2 CCD image acquisition unit
02

CCD Image Acquisition

Captures zebra-pattern deformation through the glass sample using a dedicated CCD camera system.

FZT-2 analysis software
03

Analysis Software

Processes the captured image, identifies stripe deformation and automatically calculates the quantitative zebra-angle result.

FZT-2 mechanical positioning system
04

Mechanical Positioning

Controls sample positioning and measurement geometry to support consistent, repeatable testing.

Quality Control Value

From Visual Evaluation to Repeatable Quality Control

  1. 01

    Reduced Operator Dependency

    Replace subjective visual judgement with a consistent automated measurement process.

  2. 02

    Repeatable Measurement

    Apply the same measurement method across samples and production periods.

  3. 03

    Traceable QC Records

    Retain measurement results for review, comparison and quality investigation.

Installation Evidence

FZT-2 in an Industrial Glass QC Environment

Representative installation views showing the FZT-2 measurement system operating as an integrated optical, mechanical and software setup.

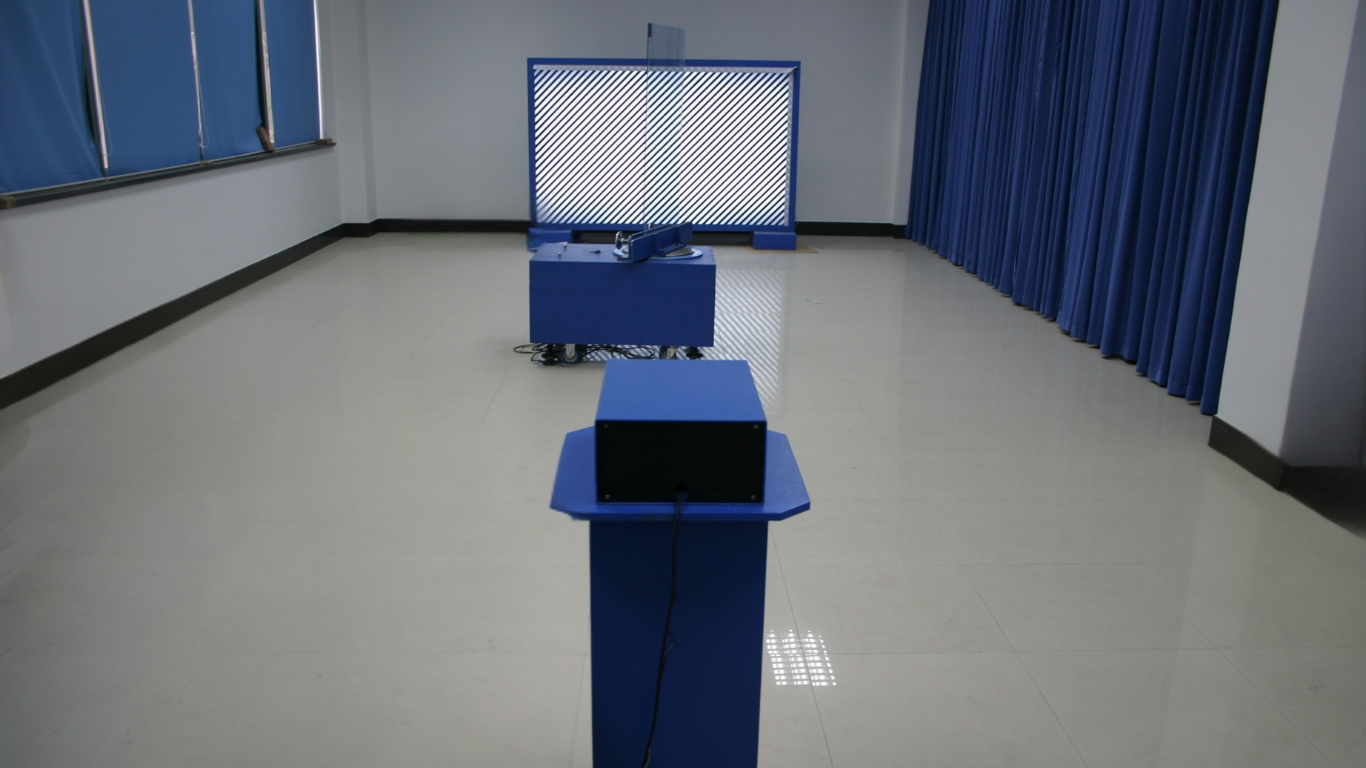

Representative FZT-2 installation showing workstation, image-acquisition unit, sample positioning station and zebra board

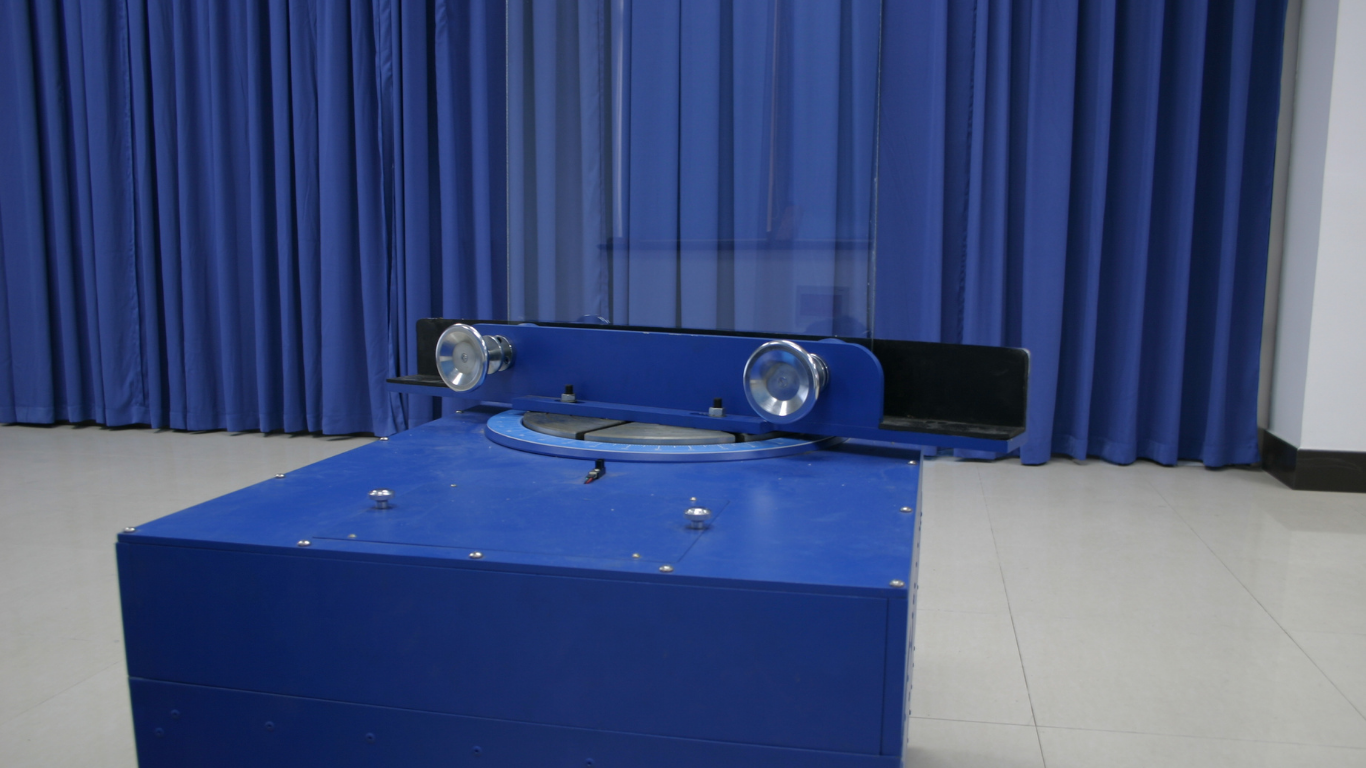

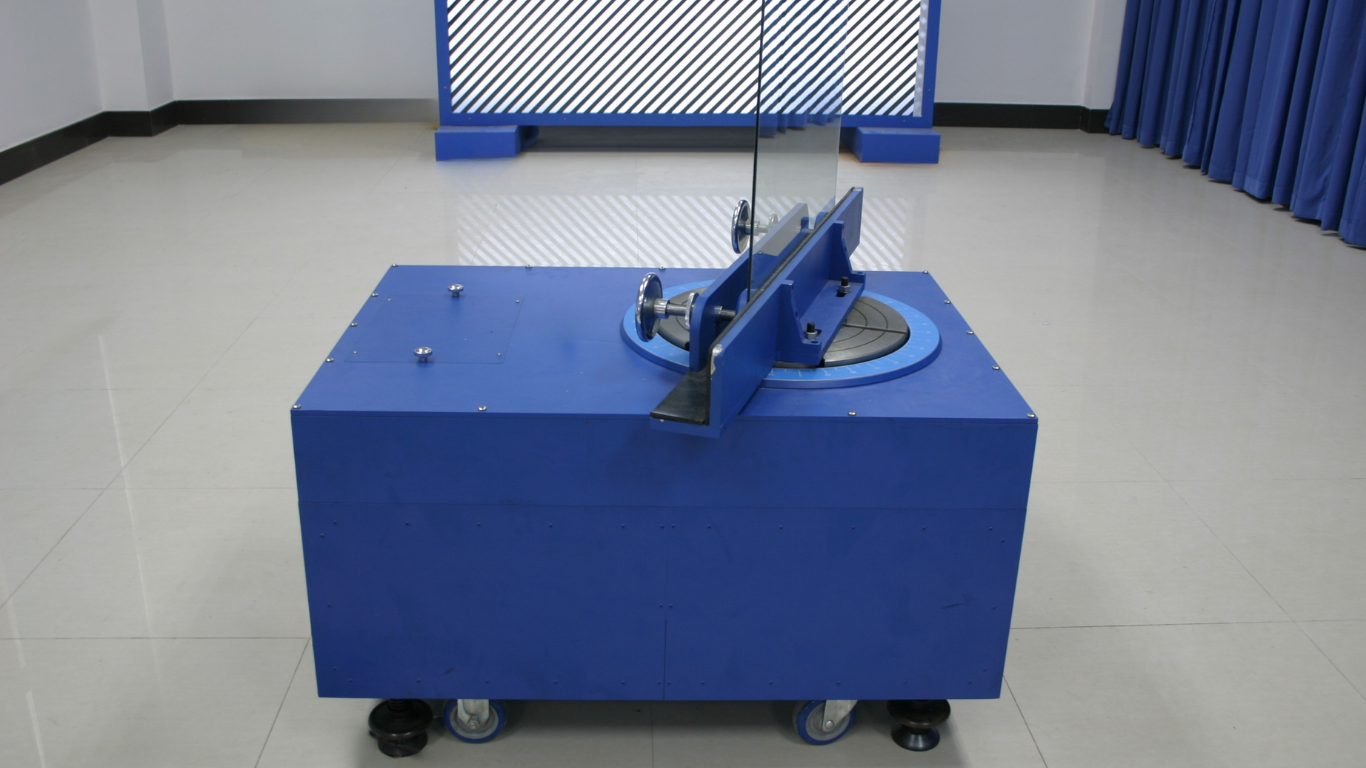

FZT-2 mechanical positioning station with glass sample aligned in front of the zebra board

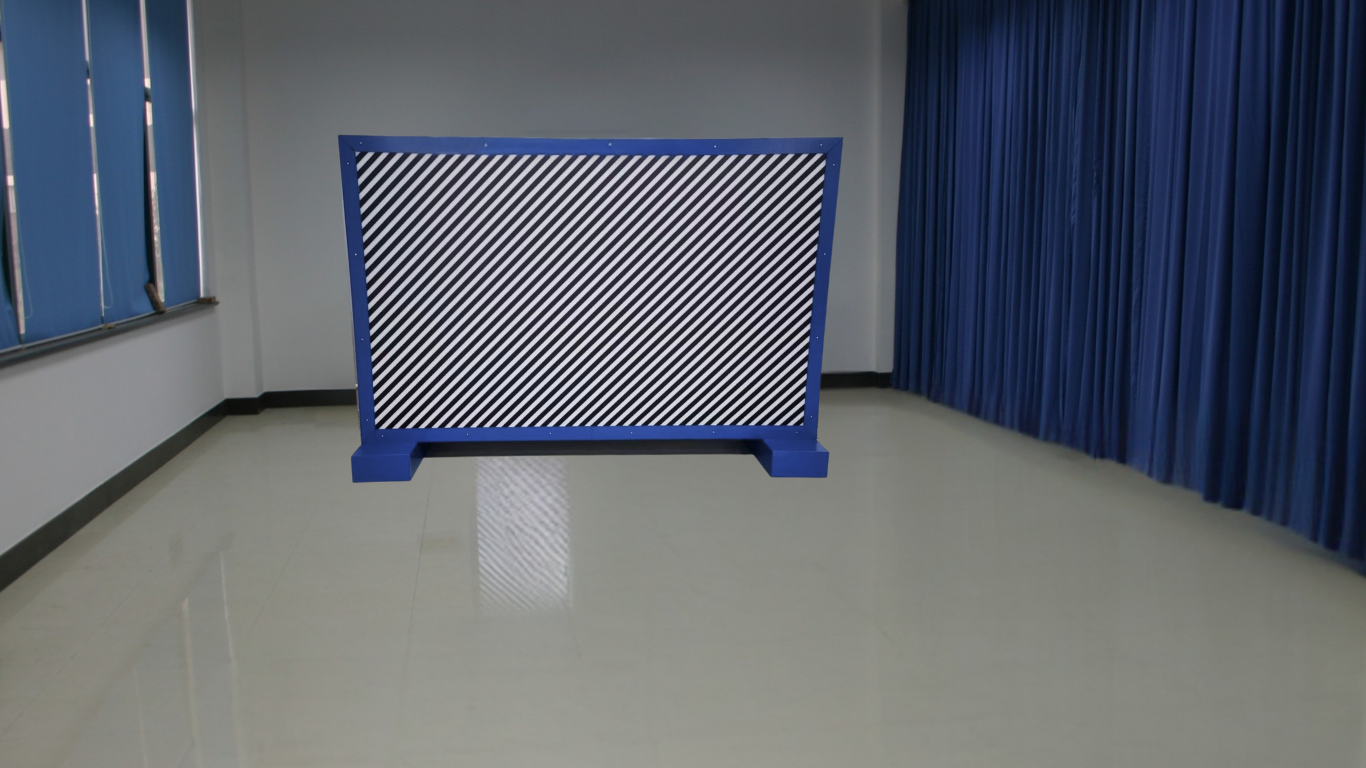

FZT-2 zebra board used for optical stripe pattern measurement

Representative industrial installation. Image acquisition, sample positioning, zebra-board reference and software analysis operate as one measurement system.

System Integration

Automatic Reporting

Every Measurement Becomes a Searchable Test Record

The FZT-2 automatically generates a test report after each measurement. Reports are stored locally on the industrial PC and named using the exact test date and time.

  • Quantitative zebra angle result
  • Sample data, deformation curves and detected wave-line positions
  • Time-based file naming for historical traceability
  • Storage for up to two years, depending on configured capacity
Explore Automatic ReportingDownload Test Report
FZT-2 example test reportTime-Stamped Quality Record

Software & Data Output

Software Configured Around Your QC Workflow

FZT-2 can be configured around project-specific measurement, reporting and data-handling requirements.

01

Configurable Measurement Regions

Inspection regions can be defined according to project requirements, including edge, central or other specified areas.

02

Structured JSON Output

Measurement results can be generated as structured JSON files for customer-side review, storage and downstream data handling.

Agreed output fields · Timestamp-based naming · Agreed storage location

03

Measurement Metadata

Records can include agreed information such as sampling time, measurement time and other project-defined metadata.

04

Integration Requirements

Plant and data-system interface requirements can be reviewed during project definition.

MQTT or OPC UA options can be evaluated on a project basis.

Measurement Evidence

From Optical Capture to Documented Result

FZT-2 combines physical zebra-pattern capture, software-based analysis and structured reporting within a defined measurement workflow.

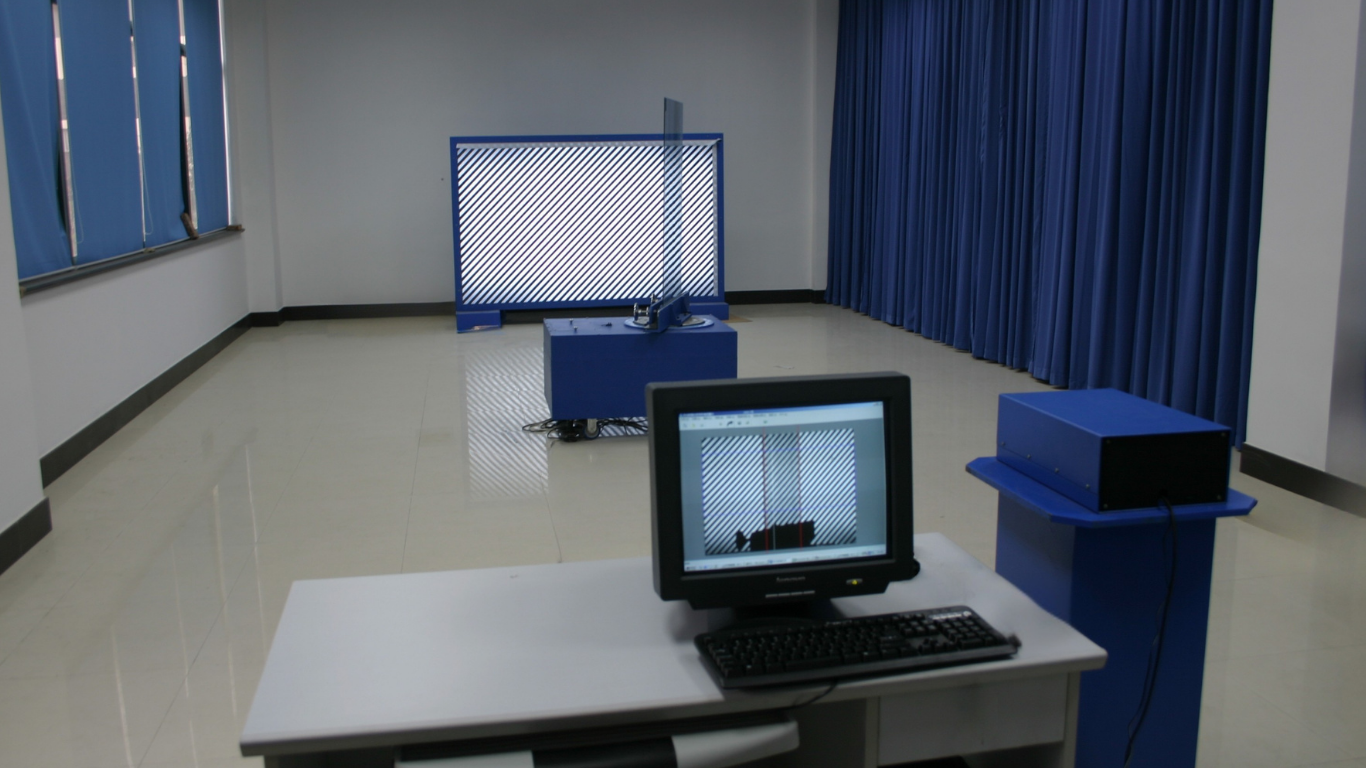

FZT-2 measurement setup showing monitor, camera unit, glass sample and zebra board
01

Capture the Optical Pattern

The camera captures the zebra pattern through the positioned glass sample within the defined measurement area.

FZT-2 software screen showing selected measurement region and zebra pattern analysis guide lines
02

Analyse the Pattern

The software analyses the captured zebra pattern within the selected measurement region to generate quantitative measurement results.

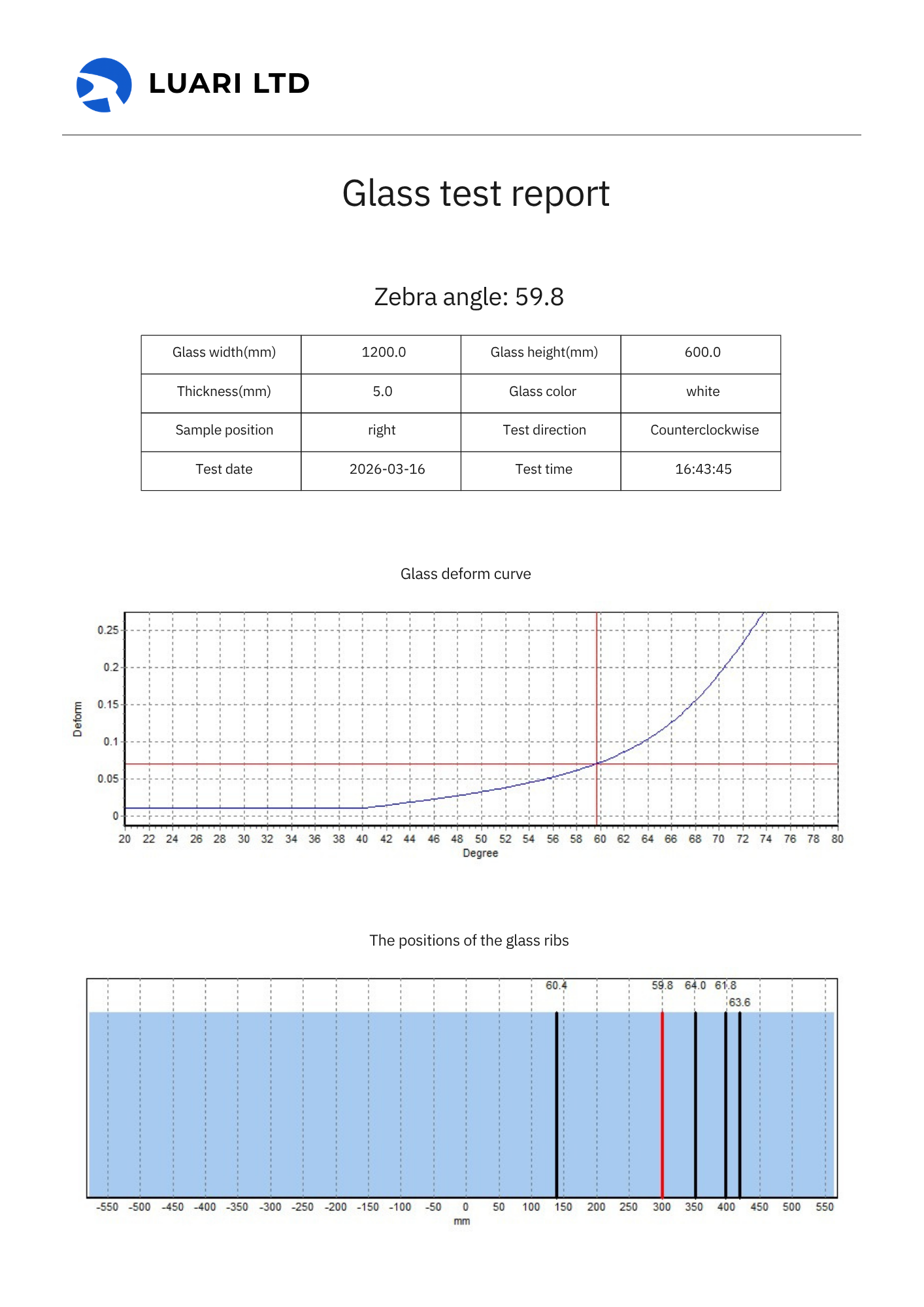

Example FZT-2 test report showing recorded zebra angle result and traceability information
03

Document the Result

Measurement results are recorded in a structured test report for quality review and traceability.

View Sample Test Report →

Measurement Performance

Core FZT-2 Measurement Specifications

Measurement Range 0–75°
Repeatability ±0.5°
Measurement Accuracy ±0.2°
Typical Operating Range 15–70°

Measurement performance depends on the supplied configuration and operating conditions.

Technology and Standards

Technology, Standards and Technical References

FZT-2 Measurement Method

Patent-Based Measurement

FZT-2 uses patented image-analysis methods for objective zebra-angle evaluation.

ZL2004200069278 View Compliance Documentation →
Technical References

Referenced Standards

Relevant technical references identified for zebra-angle and float-glass quality evaluation.

ISO TC160 N63E-83 JIS R3202-1996 EN 572-2 GB 11614-2009
Conformity and Documentation

Technical Documentation Available

CE conformity documentation
EMC compliance assessment
Technical product documentation

See the FZT-2 in Operation

Watch the automated measurement process from sample positioning and image acquisition to quantitative Zebra Angle calculation and test-record generation.

Configuration and Application Review

Specify the FZT-2 for Your Measurement Environment

FZT-2 is suitable for laboratory and quality-control environments. Equipment housing colour can be customised according to customer preference.

BlueStandard colour
GreenAlternative colour
Other ColoursAvailable upon request
Request Technical ReviewDownload System Overview
