Float-Glass Iridescence Inspection
Dedicated workflow for observing and judging iridescence in float glass.

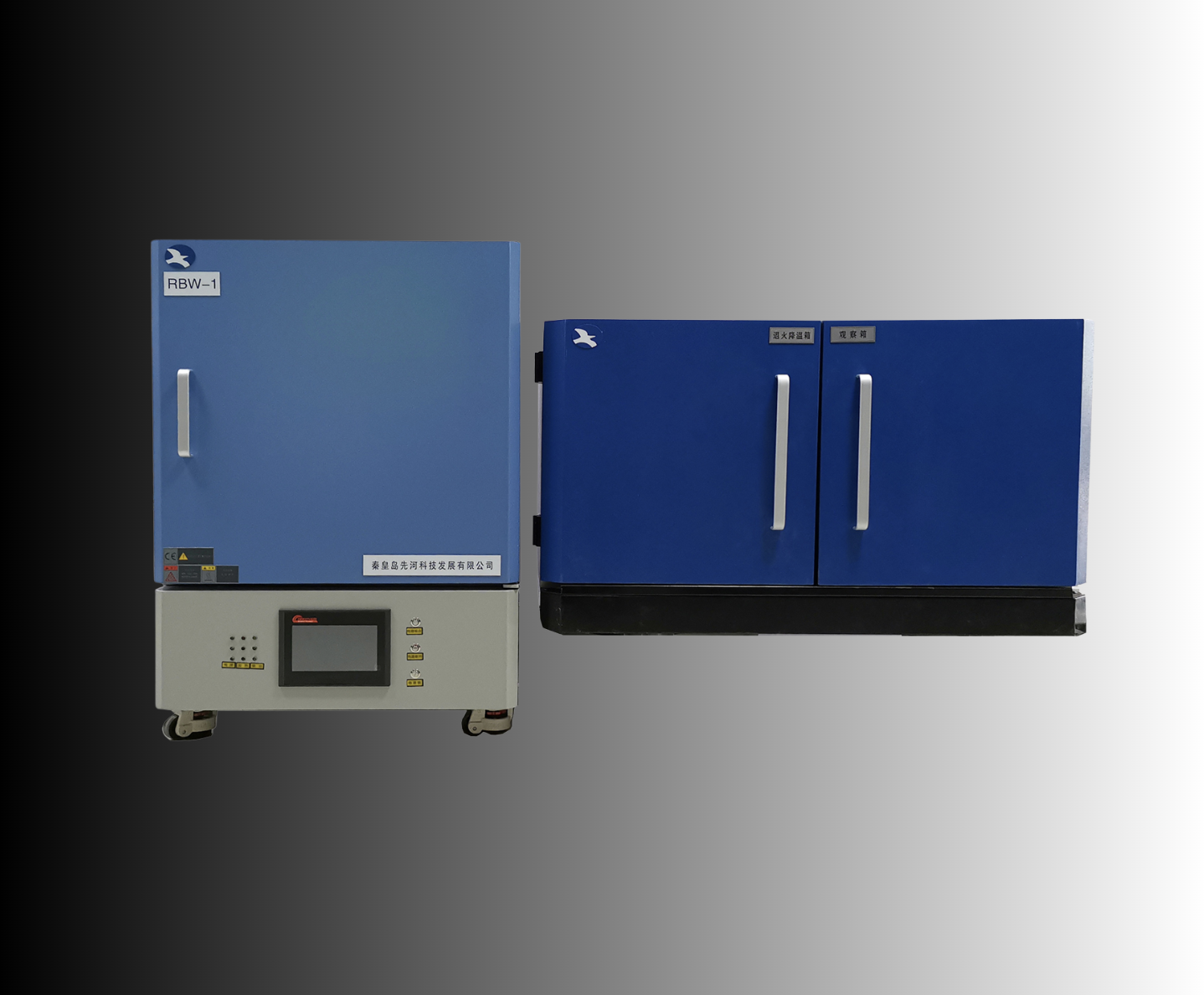

RBW-1 Float Glass Iridescence Inspection Instrument
Controlled Heating and Observation for Float-Glass Iridescence
RBW-1 combines controlled heating, annealing and visual observation to provide stable, repeatable test conditions for evaluating iridescence in float glass.
Designed for float-glass iridescence evaluation
Iridescence Inspection
System Overview
Integrated Heating, Annealing and Observation
Temperature Range
Room temperature to 1150°C
Heating Rate
0–20°C/min adjustable
Temperature Control
≤ ±0.2%
Samples per Test
4
The system applies a programmed heating curve, stabilises the sample under annealing conditions and then supports direct observation of surface iridescence.
Key Features
Heating, Annealing and Inspection Functions
Programmable Heating Curve
Controlled heating profiles can be configured for the test process.
Real-Time Furnace Control
Furnace temperature is displayed and controlled during testing.
Timing Function
Test timing can be set and displayed as part of the controlled workflow.
Multi-Layer Annealing Structure
The annealing unit uses a multi-layer structure with aluminium-silicate fibre material to improve temperature stability.
Touch-Screen Control
Intelligent touch-screen control provides access to the main operating functions.
Technical Specifications
RBW-1 Instrument Data
Rated voltage
380 V
Rated power
9 kW
Temperature-control range
Room temperature to 1150°C
Heating rate
0–20°C/min, adjustable
Temperature-control accuracy
≤ ±0.2%
Furnace-temperature fluctuation
≤ ±1°C
Sample-chamber dimensions
400 × 300 × 200 mm
Sample dimensions
100 × 100 mm
Samples per test
4
Control method
Intelligent touch screen
System Configuration
Integrated System Components
- Heating unit
- Annealing unit
- Observation unit
- Multi-layer thermal structure
- Touch-screen control system
Applications
Typical Inspection Use Cases
- Float-glass quality inspection
- Product type testing
- Research laboratories
- Standards-testing laboratories
Application Review
Discuss Iridescence Testing Requirements
Share the float-glass product, sample format and required heating and inspection workflow so LUARI can review the RBW-1 configuration for your laboratory.
