Turn each zebra angle test into a clear, structured quality record.
The FZT-2 does more than calculate a zebra angle result.
It also creates a structured report that helps quality teams review the sample, understand the measurement, and keep a clear inspection record.
This example report shows the zebra angle result together with sample information, a deformation curve, and the positions of the most prominent glass ribs / tendons.
Each report brings the main test result and supporting data into one place.
- Zebra angle result
- Sample size and thickness
- Sample position and test direction
- Test date and time
- Deformation curveRib / tendon position display
A clear report makes the result easier to review, compare, and store.
Instead of keeping only a final angle value, quality teams can keep a more complete record of the sample and the measurement output.
In automatic mode, the operator places the sample onto the rotating bracket and the system completes the testing process automatically.

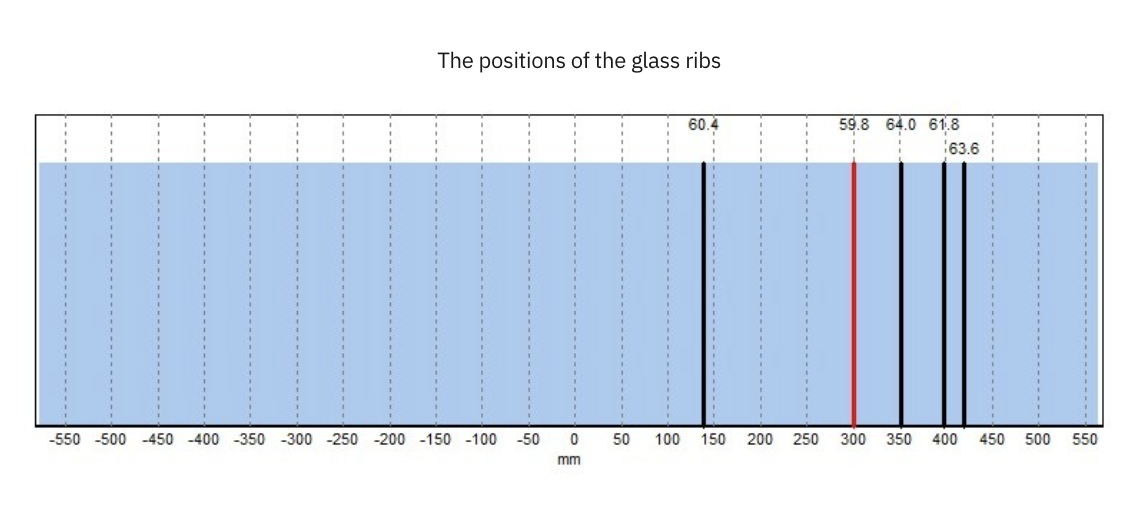

The FZT-2 calculates the zebra angle, generates the deformation curve, and displays the positions of the five most prominent glass tendons for clearer review and documentation.
