0.01 mm Measurement Accuracy
Electronic digital measurement supports fine assessment of glass bending.

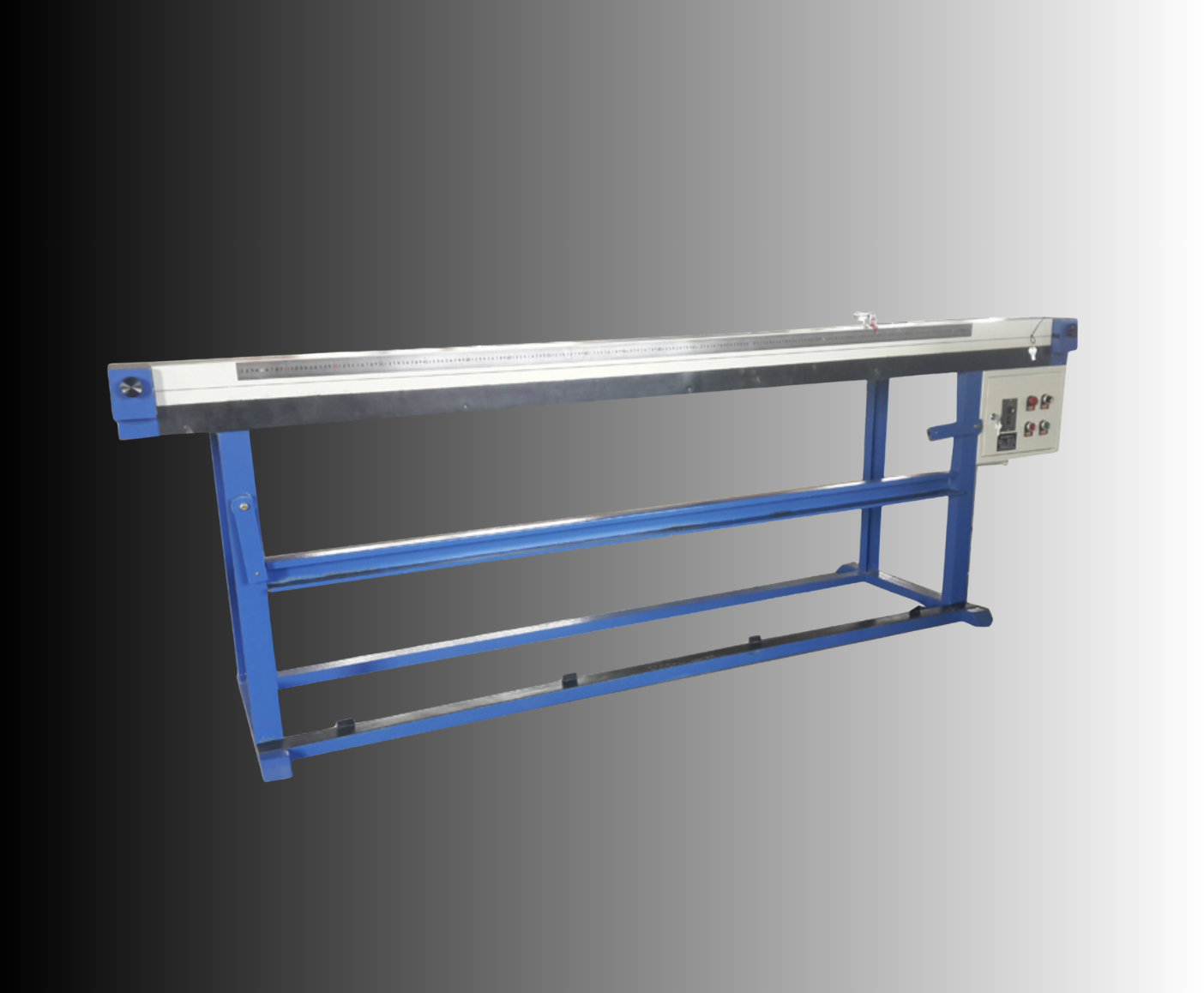

BD-5 Glass Bending Tester
Quantitative Bow and Bending Measurement for Glass
BD-5 measures glass bending using a tensioned steel wire as the reference and an electronic digital dial indicator travelling along a precision alignment rail.
Designed according to GB 11614-2009
Glass Bending Measurement
System Overview
Reference-Wire Measurement of Glass Bending
Maximum Sample Length
2000 mm
Measurement Accuracy
0.01 mm
Alignment Error
0.08 mm
Indicator Travel Speed
≤3.3 cm/s
The instrument measures the distance between the glass sample and the tensioned reference wire to determine glass bending.
Key Features
Measurement and Motion Functions
2000 mm Sample Capacity
Supports glass samples up to 2000 mm in length.
Tensioned-Wire Reference
A straight tensioned steel wire provides the geometric reference baseline.
Precision Alignment Rail
The digital dial indicator travels along a precision alignment guide rail.
Motorised Horizontal Travel
The indicator moves horizontally at a specified speed of up to 3.3 cm/s.
Low-Power Laboratory System
Specified equipment power consumption is 20 W.
Technical Specifications
BD-5 Instrument Data
Maximum sample length
2000 mm
Measurement accuracy
0.01 mm
Alignment error
0.08 mm
Dial indicator type
Electronic digital
Horizontal indicator travel speed
≤3.3 cm/s
Power
20 W
Power supply
AC 220 V / 50 Hz
Operating location
Indoor
Vibration
No significant vibration
System Configuration
Measurement Components
- Tensioned steel-wire reference
- Precision alignment rail
- Electronic digital dial indicator
- Motorised horizontal traverse
- Glass support frame
Applications
Typical Measurement Use Cases
- Float-glass bending inspection
- Tempered-glass quality evaluation
- Outgoing inspection of glass products
- Glass laboratories
- Third-party inspection organisations
